EZLITE
The cost effective EZLite-NS-2 system is the simplest and most versatile instrument for standard viewing angle.
EZLite series are ideal tools, with +/-60° angle aperture. Luminance, color in a matter of seconds or spectral data in a few minutes.
Allowing fast measurement the EZLite-NS-2 is ideal for the displays quality control.
Overview
EZLite-NS-2 allows reliable viewing angle luminance and color data. It provides fast and accurate measurements of the full viewing cone with high angular resolution.
EZLite-NS-2 measures a +/-60° viewing angle luminance map in less than 10s.
The use of Coaxpress-6 highly improves the stability of the communication links during the utilization of the equipment.

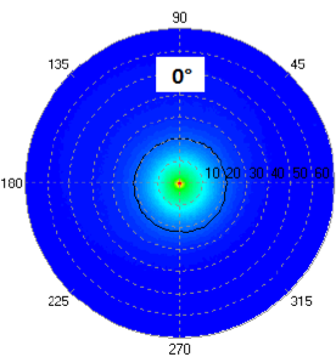

EZLite-NS-2 for Chief Ray Angle
Cost-effective solution for Chief Ray Angle analysis
- Precise part of the display analyzed (2 or 0.5mm)
- Full microdisplay captured by moving the display or the system

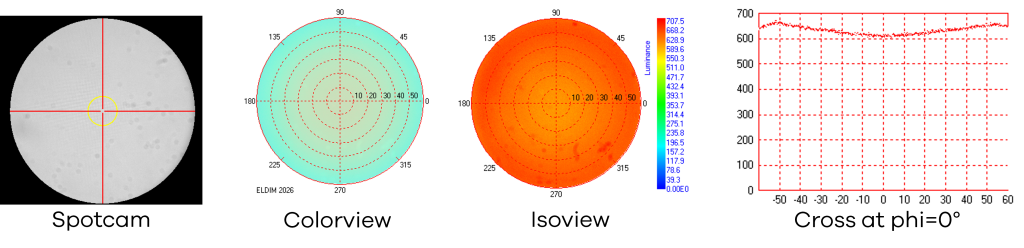

EZLite-NS-2 for Microdisplays
Measurement from µdisplay Lambertian emission
Spot size : 500µm
Features
- Color measurements in less than 10s
- High color and luminance accuracy
- Viewing angle aperture : +/-60°
- Angular optical resolution : 0.75°
- Cooled Sensor
- Colored filters
- Coaxpress-6 (up to 4 links)
Applications
- Viewing angle analysis in Q&A
- VESA/ICDM-IDMS standards compliance tests
- Goniometric types measurements
